THE-REMOTE Antenna Extension
THE-REMOTE Antenna Extension
Couldn't load pickup availability

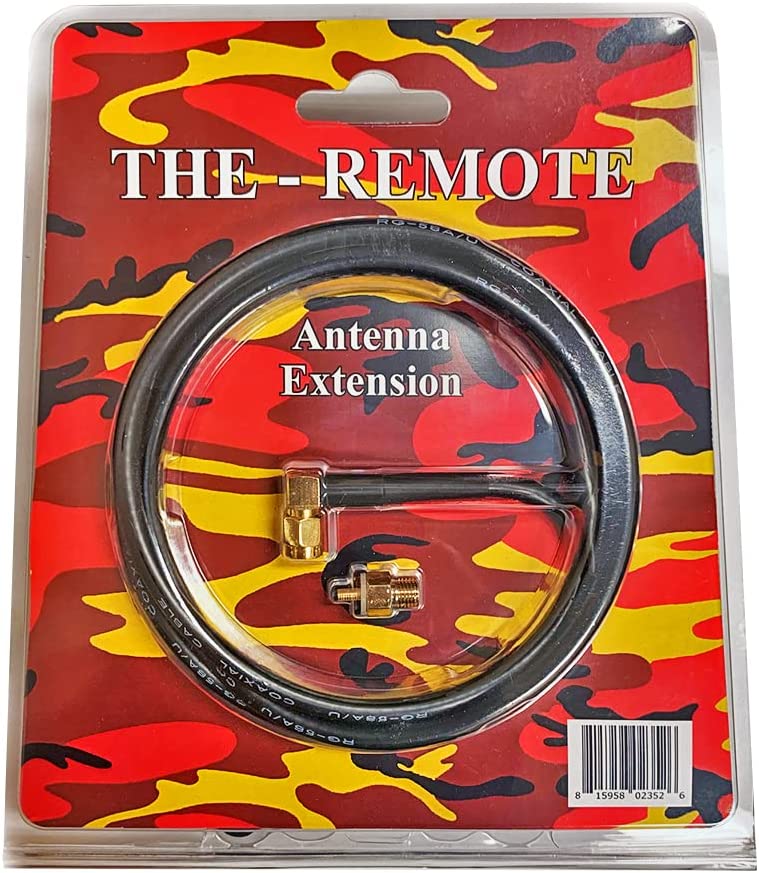

THE-REMOTE Antenna Extension
Used to increase range of THE-REMOTE and THE-REMOTE PRO when there is reception interference. Common range problems are when varmint cages interfere with THE-REMOTE (Faraday Effect). The ground can interfere with reception so getting the antenna higher from the ground can improve range reception. Getting the antenna within a direct line of sight also helps range.
https://the-remote.com/instructions/instructions-2/
<head><meta charset="UTF-8" /></head>
1. Remove Existing antenna from THE-REMOTE
2. Attach extended antenna cable adapter “B” into The- Remote finger tight
3. Route 36” cable “A” to side of feeder and attach to Feeder apparatus using cable clamp “D” and screw “E”. Route cable A in a manner to prevent kinking of the cable.
4. Mount stand-off bracket “C” as high as possible to side of feeder facing stand or operator position
5. Attach the top end antenna cable “A” to stand off bracket “C” using clamp “D” and screw “E”
NOTE:
5/16” hex driver (not included) is required for screws “E”
